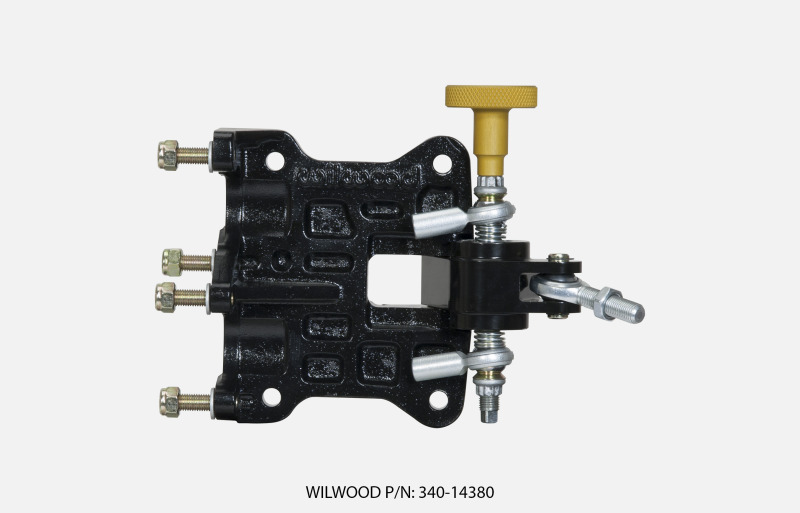

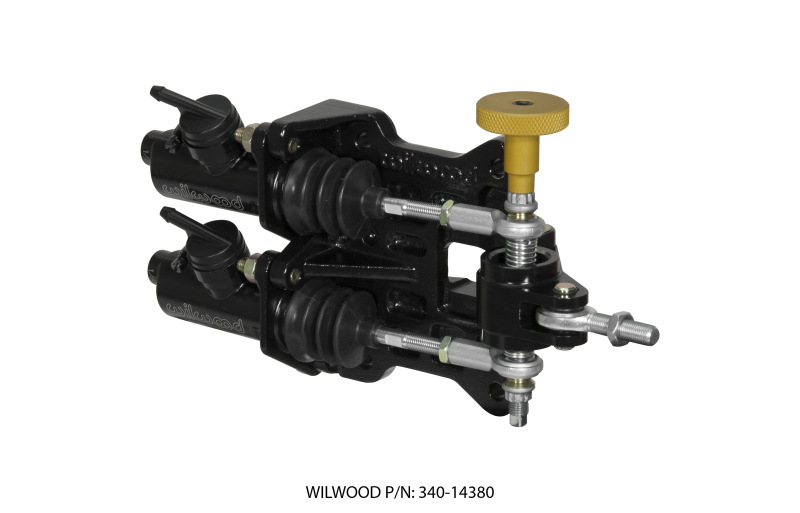

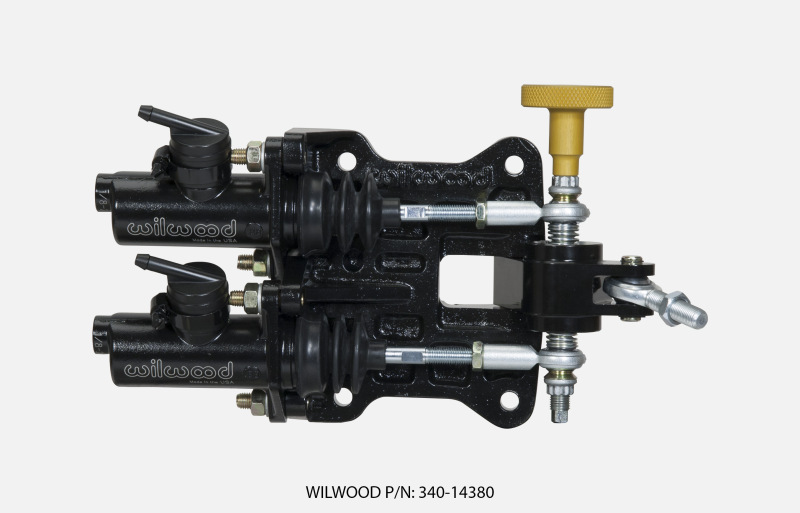

This Tru-bar unit is ideal for Dirt Modifieds, Champ Cars, Sprint Cars, Midgets, or any application where the master cylinders must be mounted in a remote location from the pedal. To accommodate fitment in tight space locations, the master cylinders are mounted at 60 degrees from the pedal base for use with remote fill fluid reservoirs. This unit features a high leverage, machined billet pivot arm that multiplies input force at a ratio of 1.48:1 and when mounted within the driver’s reach, the included adjustment knob can be used for quick and easy on-track bias adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.
- MPN:
- 340-14380
- Product ID:
- 139746
